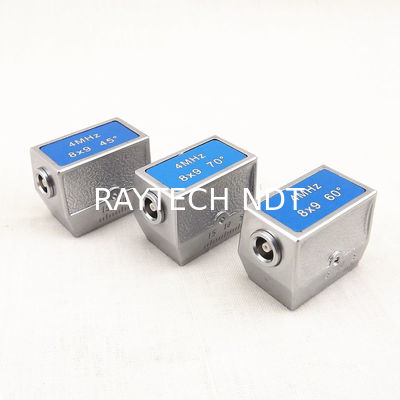

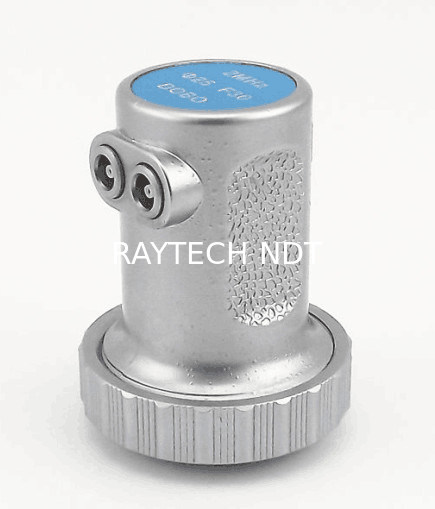

UT Transducer, Ultrasonic flaw detector probe, Straight Probe, Angle Beam, Dual element
تفاصيل المنتج:
شروط الدفع والشحن:
|
مفصلة وصف المنتج
| Product Name: | UT Transducer, Ultrasonic flaw detector probe, Straight Probe, Angle Beam, Dual element | Angle: | 45 and 60 and 70 and 80 etc |
|---|---|---|---|
| Transducer element size: | according to client | تكرار: | حسب العميل |
| Connector location: | top connector, side connector | OEM: | can produce according to customer |
UT Transducer, Ultrasonic flaw detector probe, Straight Probe, Angle Beam, Dual element Probe type Designation Angle Transducer element size [mm] Frequency [MHz] angle probe HFD 9x8-2M-35 35° 8x9 2 MHz HFD 9x8-2M-45 45° 8x9 2 MHz HFD 9x8-2M-60 60° 8x9 2 MHz HFD 9x8-2M-70 70° 8x9 2 MHz HFD 9x8-2M-80 80° 8x9 2 MHz HFD 9x8-4M-35 35° 8x9 4 MHz HFD 9x8-4M-45 45° 8x9 4 MHz HFD 9x8-4M-60 60° 8x9 4 MHz HFD 9x8-4M-70 70° 8x9 4 MHz HFD 9x8-4M-80 80° 8x9 4 MHz angle probe HFD 22x20-2M
